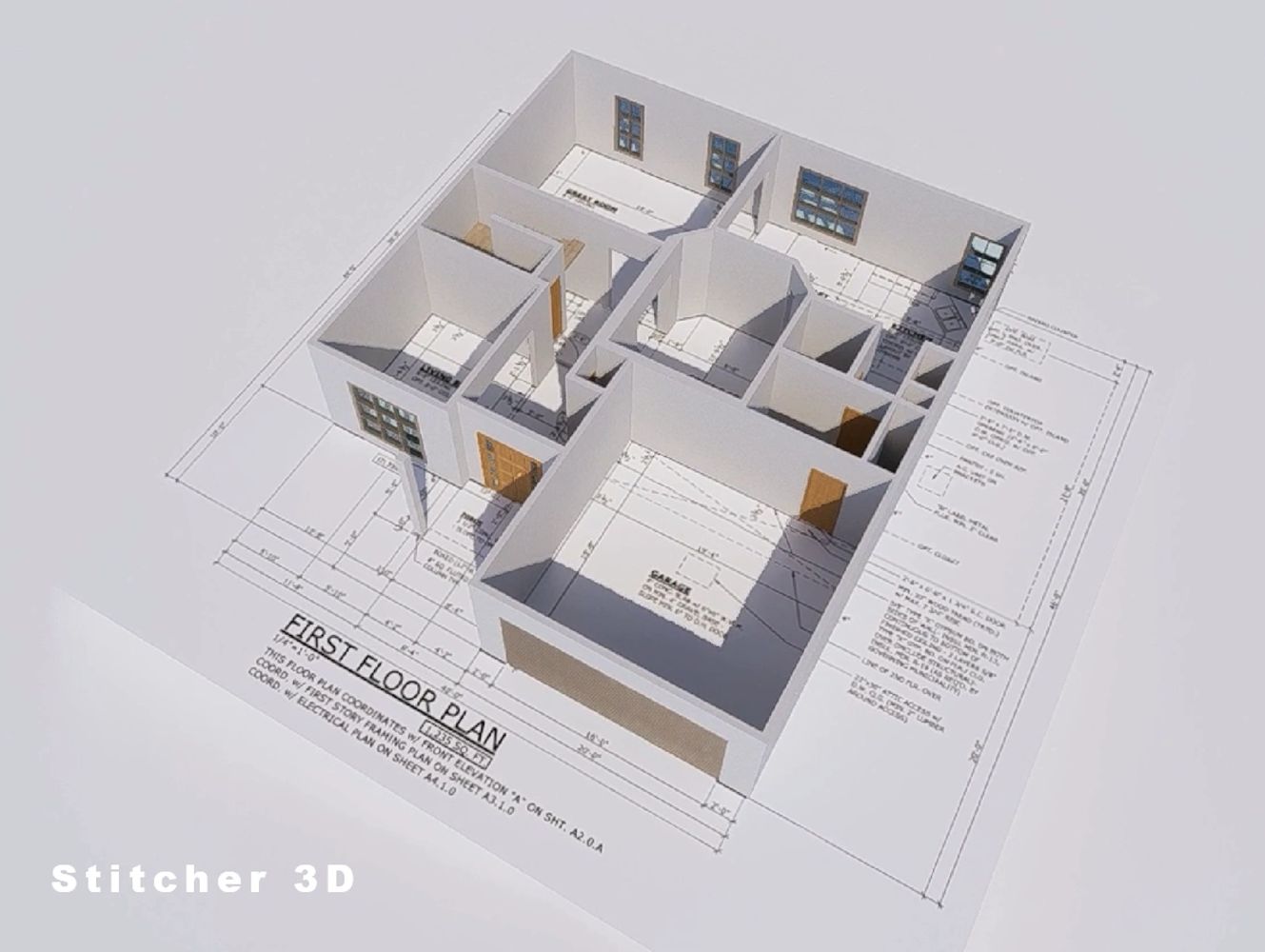

Go from 2D Plans to 3D Models Seamlessly

 Capture walls and openings faster with an intelligent, automatic 2D plan tracing process.

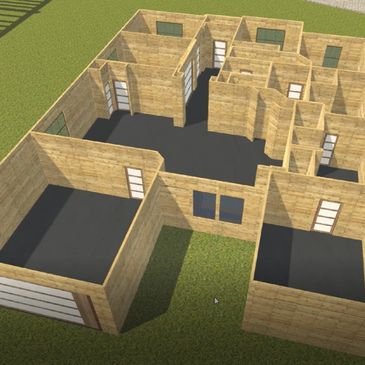

 Once the envelope is converted, the model is imported into various software applications

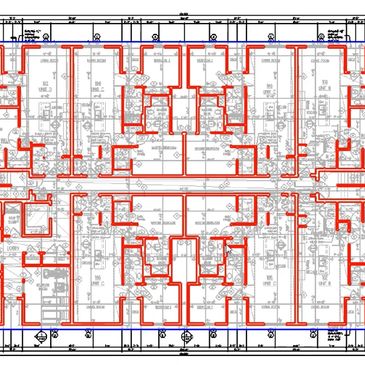

 Supports common drawing styles, including double-line, single-line, hatching, and mixed styles.

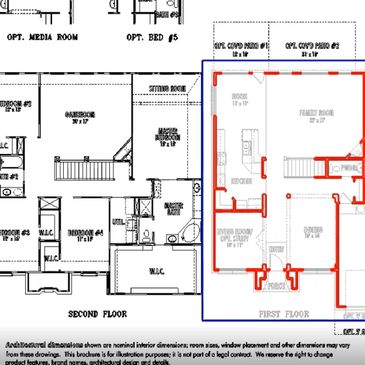

 Supports production builder options within the plan and allows incorporation of those options.

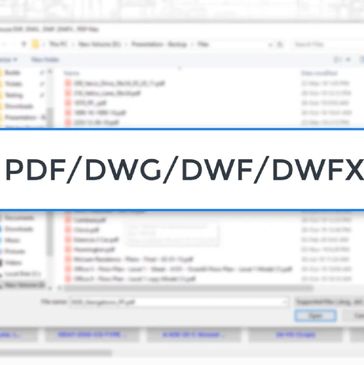

 Supports PDF, DWG, DXF, and DWF formats (verify DXF/SWF before publishing).

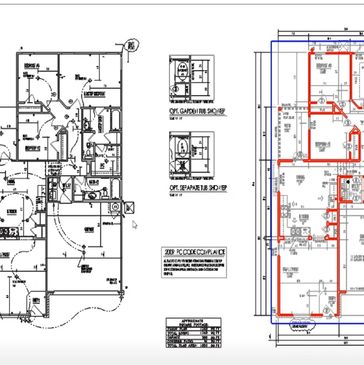

 Highlights problematic areas, assists with scale setup, and reduces common rounding errors.

 Simplifies building level alignment for greater real-time accuracy and consistency.

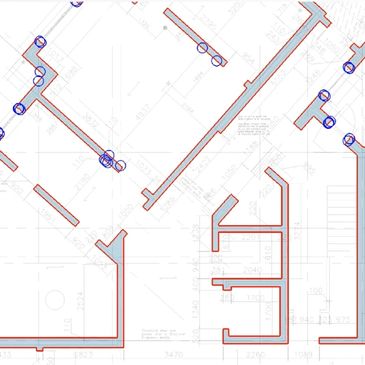

 Intelligent automatic tools detect the building layout and populate walls, openings, and fixtures.

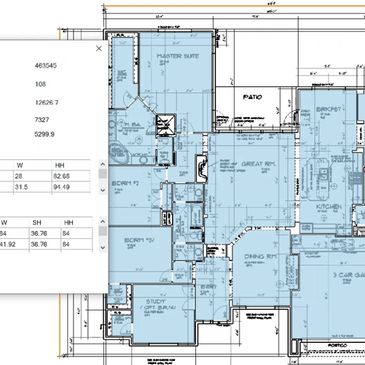

 Maps walls, windows, and doors to a preconfigured template library for faster workflows.
